Solar Switchboard Upgrade for Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—a three-phase upgrade was not required.

Why Choose Precision Electrical & Air for Your Switchboard Upgrade?

This homeowner in Chelmer undertook a significant renovation project that involved the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, coupled with a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire home. Furthermore, a new ducted air conditioning system was integrated into the overall design. Prior to connecting these sophisticated systems, it was essential to evaluate and enhance the existing switchboard to ensure compliance with the most recent standards while effectively managing the increased electrical loads that these installations would introduce.

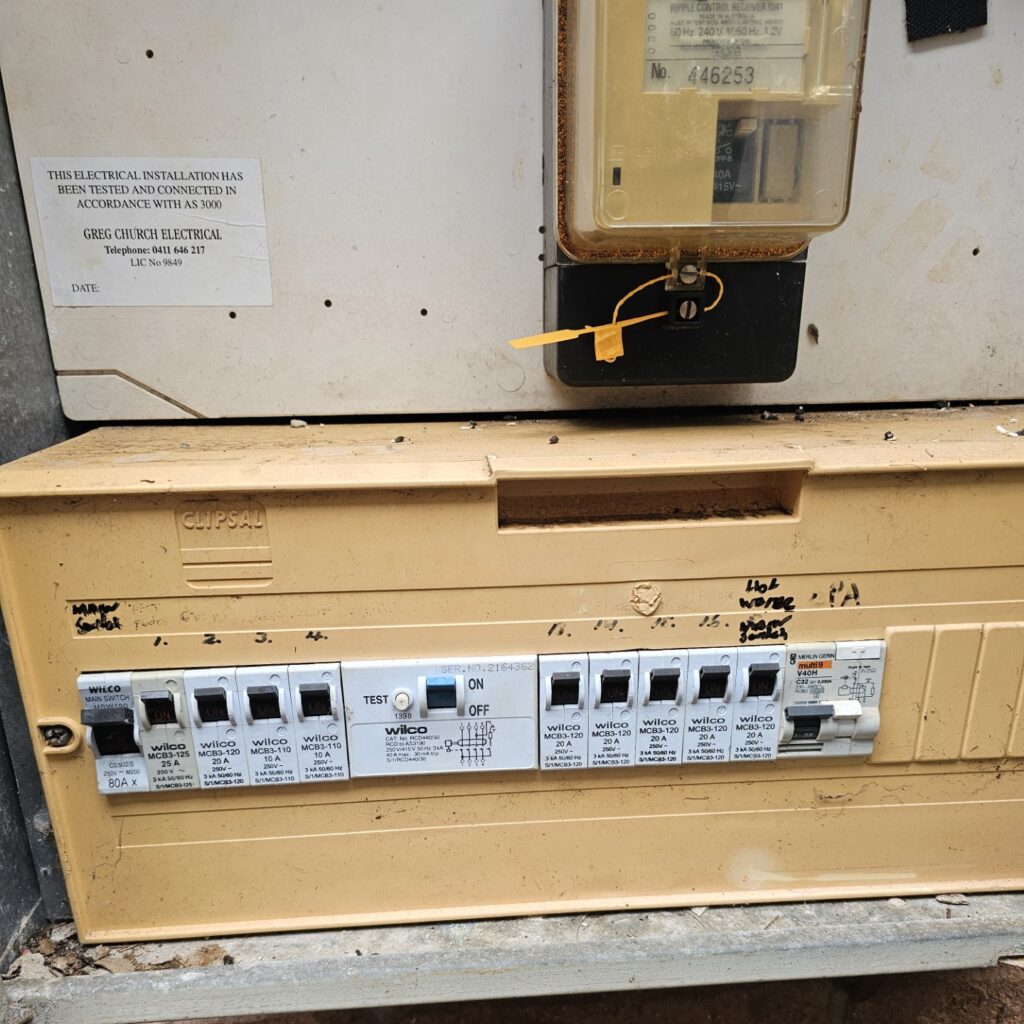

The original switchboard was outdated, featuring obsolete circuit breakers alongside a single Residual Current Device (RCD) that provided inadequate protection for the entire property. It could not accommodate solar energy integration and battery storage due to its limitations. Additionally, the circuit labeling was inadequate, rendering it non-compliant with modern standards governing contemporary energy generation systems. This lack of compliance posed a substantial risk to the efficient operation of the newly upgraded systems, highlighting the importance of thorough evaluations during such significant upgrades.

Is a Three-Phase Upgrade Really Necessary for Your System?

When assessing the specifications of a 17.86kW solar system coupled with a 30kWh battery, it is a common misconception that a three-phase upgrade is mandatory. This misunderstanding can lead to significant financial implications for homeowners, potentially incurring costs ranging from £3,500 to £6,000, alongside a lengthy wait for approval from Energex regarding network modifications.

Thorough Initial Technical Assessment to Determine Upgrade Requirements

Two key factors were crucial in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically located near the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to remain comfortably within Energex's single-phase limit of 2%. Secondly, as the solar and battery systems are specifically designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for necessitating a three-phase upgrade. Moreover, the ducted air conditioning system was also found to comply with the essential parameters for efficient single-phase operation, reinforcing the decision to maintain the existing configuration.

Consequently, it was decided to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards, ensuring optimal performance of the new installations.

Comprehensive Examination of Installed Components for Enhanced Safety and Compliance

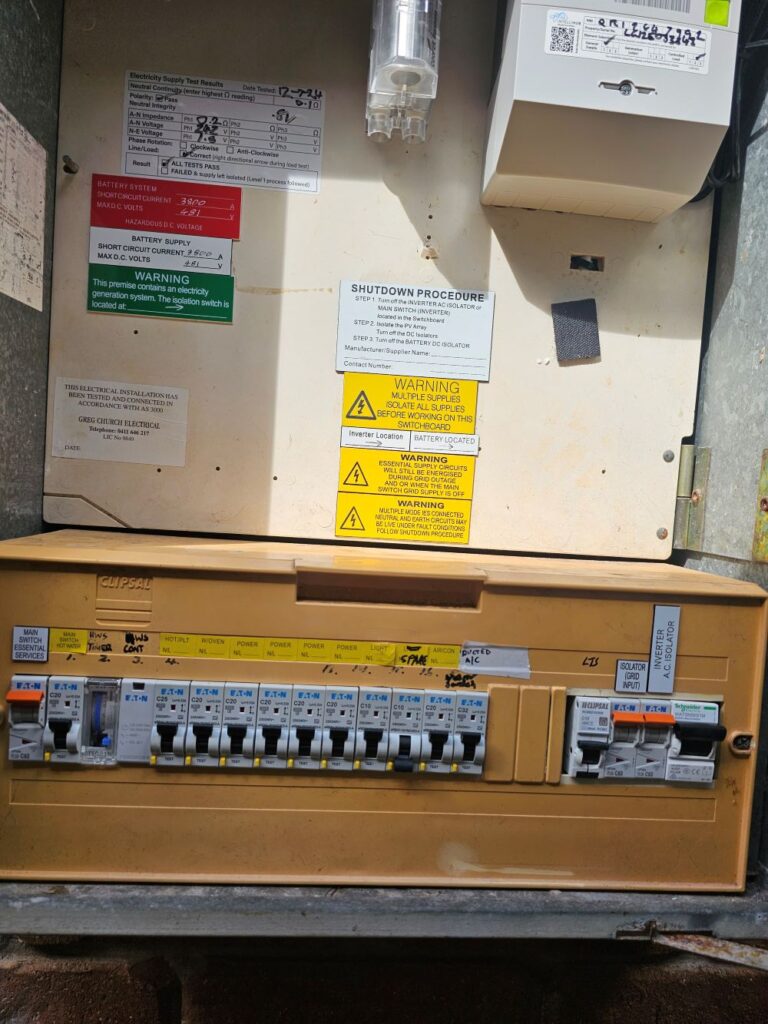

The existing switchboard underwent a complete dismantling and a thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, with each breaker meticulously labelled for easy identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations, significantly reducing the risk of overload.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition dramatically reduces reliance on the grid by optimising the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure optimal functionality and efficiency, contributing to the overall energy savings.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard, ensuring its reliability.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is suitably configured for any future electrical service work required at the property, providing peace of mind to the homeowner.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances, resulting in significant savings.

Have You Received a Quote for a Three-Phase Upgrade and Are Uncertain About Its Necessity?

While three-phase upgrades can be critical in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are unsure about its relevance to your situation, allow Precision Electrical & Air to perform a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property, ensuring you make an informed decision.

We guarantee no upselling occurs; you will receive an accurate evaluation tailored specifically to your home.

Your Frequently Asked Questions Answered

How do electricians establish the necessity of three-phase power for solar systems?

The assessment hinges on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration suffices. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable limits.

Does having a larger solar system automatically require three-phase power?

No, the size of the solar system alone does not dictate the necessity for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels, which can lead to misconceptions.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can cause complications for neighbouring properties connected to the same line. Network distributors such as Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance remains within this limit to determine whether single-phase or three-phase power is appropriate for your property.
