Shed Wiring Tips for Electricians Working in Rural Areas

If you own a shed located on acreage and find managing extension cords from your home tiresome, it is essential to ensure that your shed is wired correctly. Whether you need a basic storage shed with just a light and a power point, or a fully equipped workshop that utilises welders and compressors, adhering to the correct procedures is critically important. In NSW, the only legal method to accomplish this task is by hiring a licensed electrician.

This comprehensive guide outlines the necessary steps to supply electricity to your shed, detailing what your electrician will require for the installation process and providing a cost estimate for the Mid North Coast.

Boost Your Shed's Power Supply: Detailed Guide to Understanding Cable Runs

The primary factor for any shed wiring project is the effective transmission of power from your main switchboard to the shed itself. On larger properties, this distance can reach 30, 50, or even over 100 metres. The further the distance, the larger the diameter of the cable required to effectively manage voltage drop. This ensures that your shed receives sufficient power for all its intended uses, whether for basic lighting or heavier machinery.

When planning cable runs, you have two primary options available:

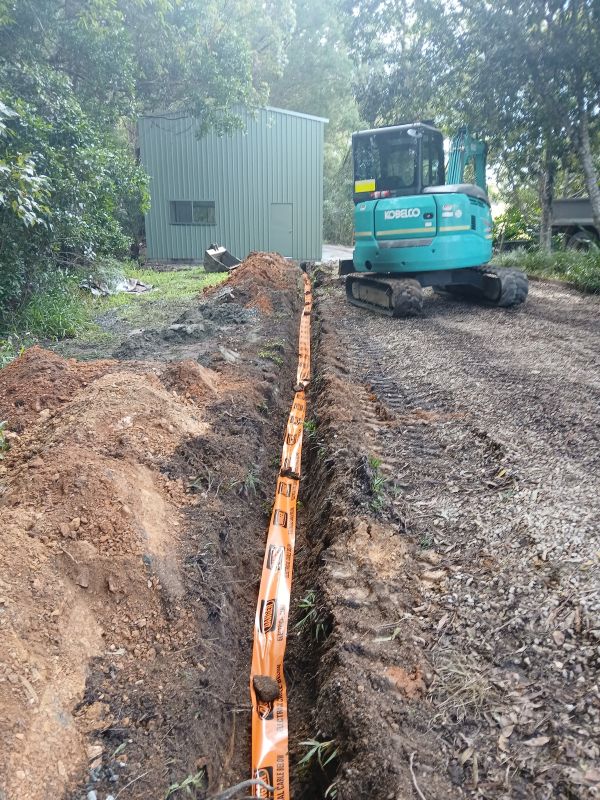

• Underground cable run — This is the most common and visually appealing option. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles regularly traverse. This method protects the cable from adverse weather, wildlife interference, and falling branches, making it the preferred choice for most properties with significant acreage.
• Overhead cable run — While less common, this option may be necessary if solid rock is present or if the terrain complicates trenching. Overhead runs must comply with proper clearance heights and require support poles, which can significantly increase costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most recommended approach. Your electrician in Bellingen can assess your site and propose the optimal route for the installation, ensuring maximum efficiency and safety.

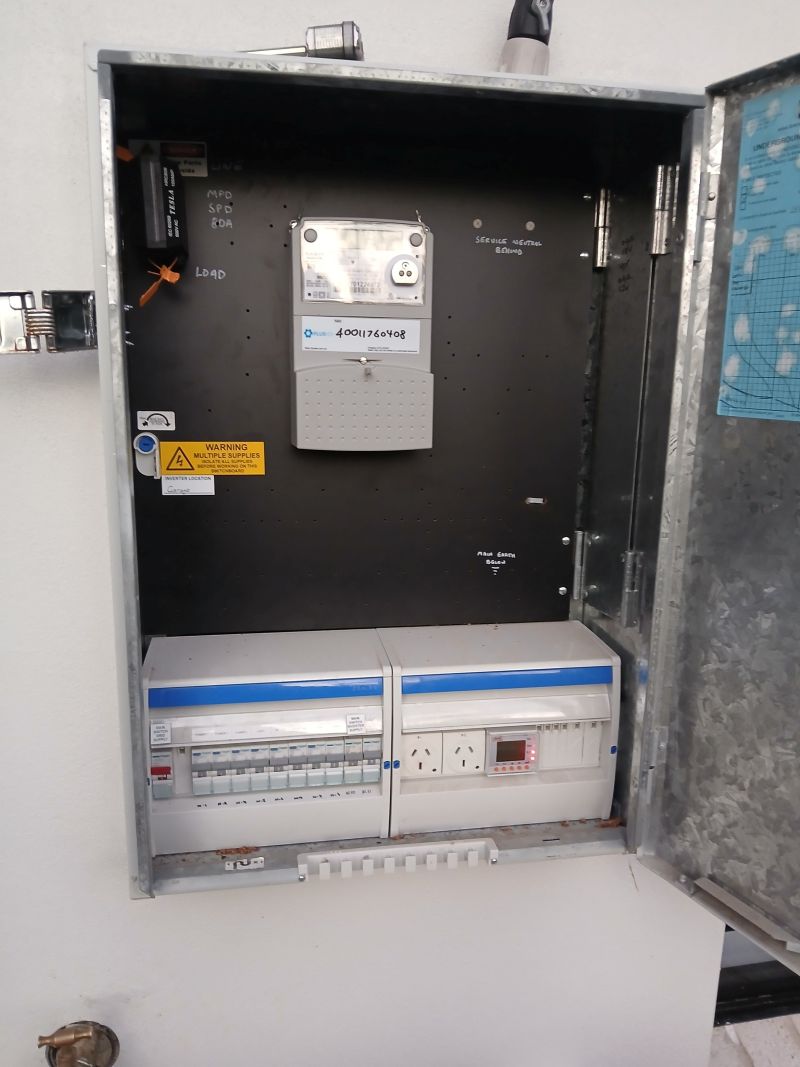

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

Simply running a single cable to the shed and plugging in appliances is inadequate. Any shed that is equipped with a proper power supply must include a dedicated sub-board, often referred to as a distribution board. This device functions as a mini switchboard within the shed, effectively managing all circuits and ensuring safety for all electrical components.

Your sub-board will typically comprise the following essential components:

• Main switch — This component allows you to isolate all power to the shed independently from the main house, enhancing safety and control over the electrical supply.
• RCDs (Residual Current Devices) — These devices, mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and damaged leads are commonplace, safeguarding both users and equipment.
• Circuit breakers — These serve to offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring that in the event of an overload, only the affected circuit will trip.

If your house's switchboard is outdated, your electrician may also recommend upgrading it to accommodate the additional load directed to the shed effectively, which can enhance the overall functionality of your electrical systems.

What Key Features Should Be Installed Inside Your Shed for Maximum Efficiency?

The specific installations that your electrician carries out inside the shed will depend entirely on its intended purpose. Here’s an overview of typical setups for various applications, ensuring that your shed meets your unique needs.

Crafting an Efficient Basic Storage Shed

If your shed primarily serves as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following setup to maximise usability and safety:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area. Your electrician can provide recommendations on the best lighting arrangement based on the shed's dimensions and layout, ensuring optimal brightness and energy efficiency.
• Two to four general power points — These will be sufficient for plugging in a charger, a radio, or a drop saw when necessary. Expect standard power points and switches to operate on a single circuit, allowing for easy access to power.
• External light — A weatherproof LED light positioned above the door will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting, enhancing convenience and safety.

Designing a Fully Equipped Powered Workshop Shed

If you frequently utilise power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to support your operational needs:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother workflow and enhancing productivity.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively, ensuring that you can use your equipment without concerns.

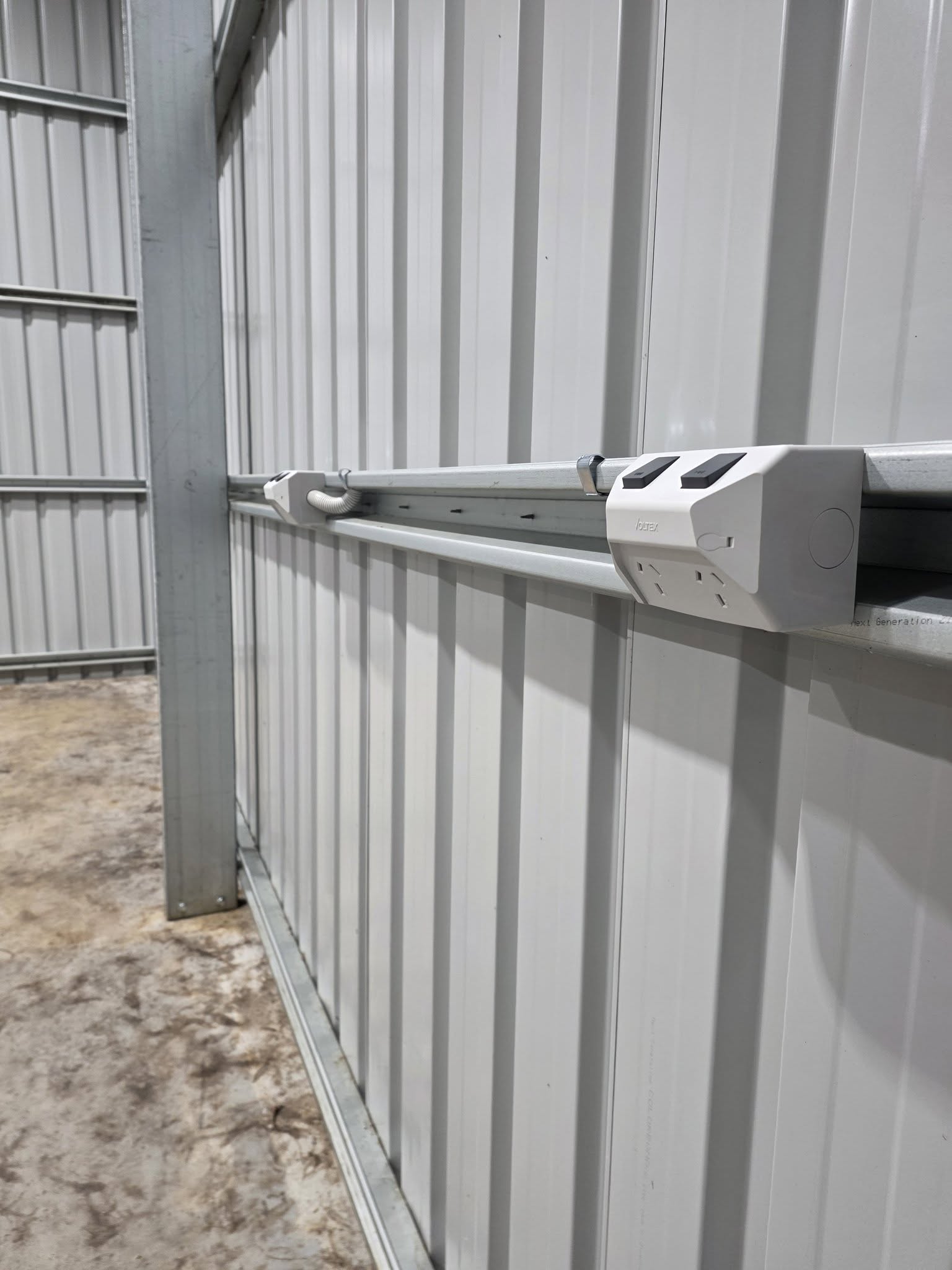

• Strategically placed additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency and ease of access.

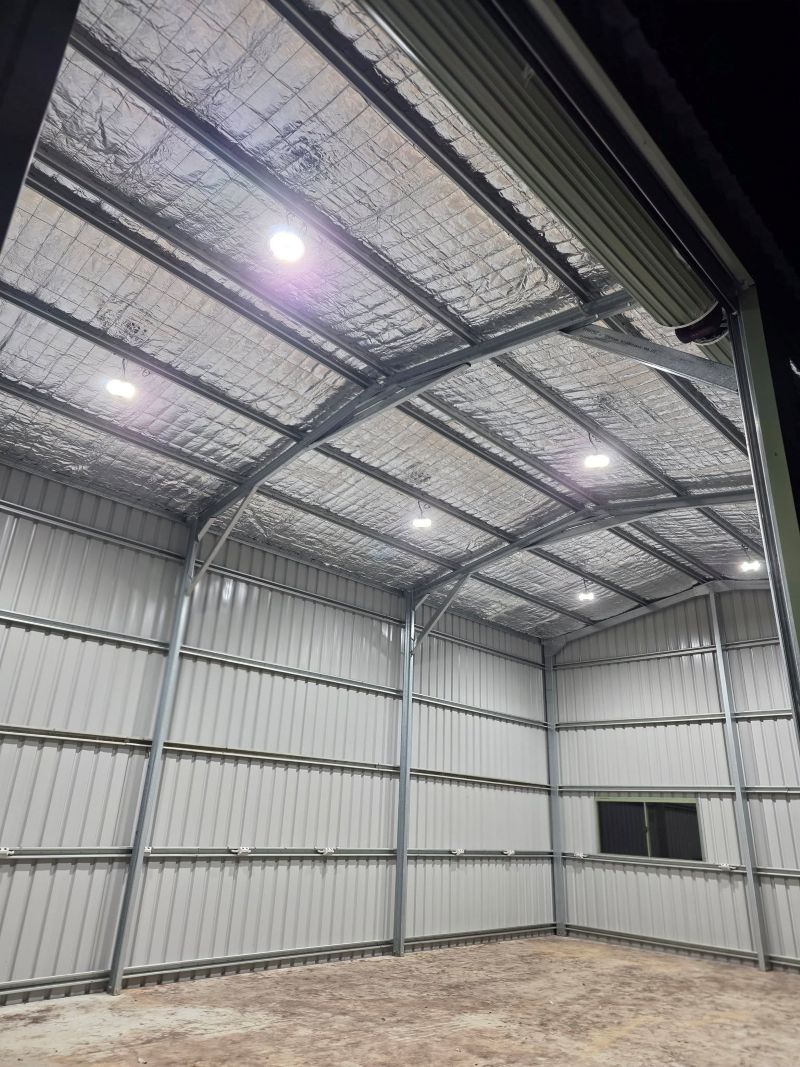

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks, creating a safer working environment.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which offers in-depth insights.

Establishing a Comprehensive Workshop With a Three-Phase Power Supply

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power may not suffice. In such circumstances, considering three-phase power is advisable to ensure adequate power supply for your needs.

Three-phase power offers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast depending on availability and local regulations.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance with all relevant electrical standards.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances, so budgeting for this is crucial.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency of operation.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will suffice. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Essential for Your Shed's Safety?

Properties located on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby lightning strike can inflict extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment that is connected to power, leading to costly repairs.

Installing a high-quality surge protection device within the sub-board acts as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment, safeguarding your investments. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to protect your assets.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, enabling the shed (and the house) to seamlessly switch to generator power safely during outages, ensuring continuous operation during emergencies.

What Are the Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations that you must be aware of when completing electrical work:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW), ensuring safety and legality.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently to ensure compliance and safety, protecting both the installation and the property.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might, so it is essential to check local regulations.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, providing you with peace of mind.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, covering essential installations.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, offering enhanced functionality for various tools.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, ensuring that your workshop meets all operational requirements.

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed, leading to a custom quote.

For a personalised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Frequently Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers to both safety and property. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets all legal standards.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations while protecting the installation.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance with local regulations.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and safety concerns.

Ensure Safe and Efficient Wiring for Your Shed

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is committed to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop tailored to your needs.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your unique requirements.
