Dedicated Circuits for Heavy Tools in Workshop Power Solutions

If you have a shed located on a rural property and are contemplating its conversion into a fully operational workshop, prioritising the electrical setup is essential. Using a MIG welder, air compressor, and table saw on the same circuit as your home can result in serious complications, such as frequently tripped breakers, flickering lights, and dangerous overload conditions that could compromise both safety and functionality.

This detailed guide outlines the vital aspects of wiring a dependable workshop in rural areas of the Mid North Coast. We will examine the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for operating larger machinery. Should your requirements be limited to basic power needs—such as lighting and a few sockets—please refer to our guide on Shed Wiring on Acreage as a suitable starting point. This article specifically addresses workshops that demand substantial power for more intensive tasks.

Why Dedicated Circuits Are Essential for Your Workshop's Power Needs

Many homes utilise multiple power outlets on shared circuits, which is generally adequate for low-energy appliances like kettles and televisions. issues may occur when attempting to run a 32-amp MIG welder alongside an air compressor simultaneously. This can create significant challenges if not effectively managed.

Consider the potential consequences of linking heavy machinery to household circuits:

• Frequent tripped breakers — A welder that draws over 30 amps on a 20-amp circuit will trip the breaker immediately or, even worse, may cause the wiring to overheat before the breaker has a chance to respond.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag. This can lead to your tools operating at elevated temperatures, performing less efficiently, and wearing out more rapidly.
• Power disruptions in the home — Your partner may face a power outage in the kitchen due to the compressor's startup, often resulting in uncomfortable discussions.
• Increased fire hazards — Overloaded wiring within walls and along cable runs is a common cause of electrical fires in rural settings.

Establishing dedicated circuits can effectively mitigate these problems. Each heavy tool should have its own dedicated circuit, properly sized for its load, along with individual breaker protection. This configuration ensures that no circuits are shared, preventing overload.

Assess the Power Consumption of Typical Workshop Equipment

Before your electrician can devise an effective circuit layout, it is critical to grasp the power requirements of your equipment. Below is a summary of the typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders usually operate at the higher end of this range. Three-phase units will have distinct power requirements (more on that later).
• Air compressor — Consumes roughly 10A to 15A. The startup current can be substantial, with compressor motors often drawing three to four times their running current for a few seconds upon starting.
• Table saw — Typically uses between 10A and 15A for a quality cabinet saw. Less expensive contractor saws may require less power, but you are likely not seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes usually on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must run continuously while using other tools, which means it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus necessitating a dedicated circuit.

When you tally the total power draw, it is clear that a single 20-amp circuit from the house will fall short. A well-equipped workshop may easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Include RCD Protection

Each circuit in your workshop demands a breaker that matches the cable size and expected load. Your electrician will compute this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires substantial power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details below).

RCD protection is crucial. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must incorporate RCD (safety switch) protection. This legal requirement is intended to safeguard against the inherent risks associated with workshop environments.
Concrete floors, metal tools, dust, and moisture elevate the likelihood of earth faults. RCDs swiftly cut power if a current leak to earth occurs, potentially distinguishing between a minor shock and a serious injury.

Typically, your electrician will employ a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

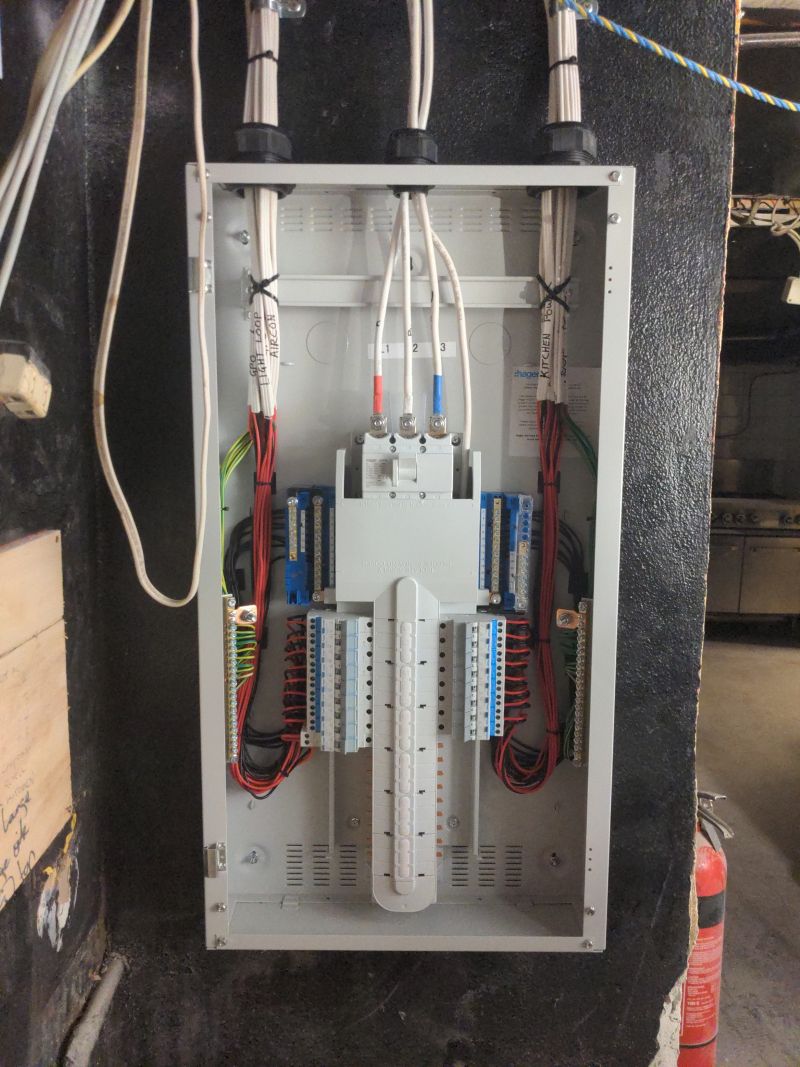

Install a Dedicated Sub-Board to Cater for Your Workshop's Electrical Needs

Rather than running multiple individual cables back to the main switchboard, establishing a dedicated sub-board in your workshop provides a more efficient solution. Below are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration diminishes voltage drop and reduces cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, there is no need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, facilitating the integration of new tools later.
• Isolation capability — You can switch off all workshop power from a single main switch without affecting the electricity supply to the house, which is a vital safety feature.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary to adequately support the workshop sub-board. Older ceramic fuse boards are unlikely to safely handle the increased load.

A standard workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future expansions to ensure long-term efficiency.

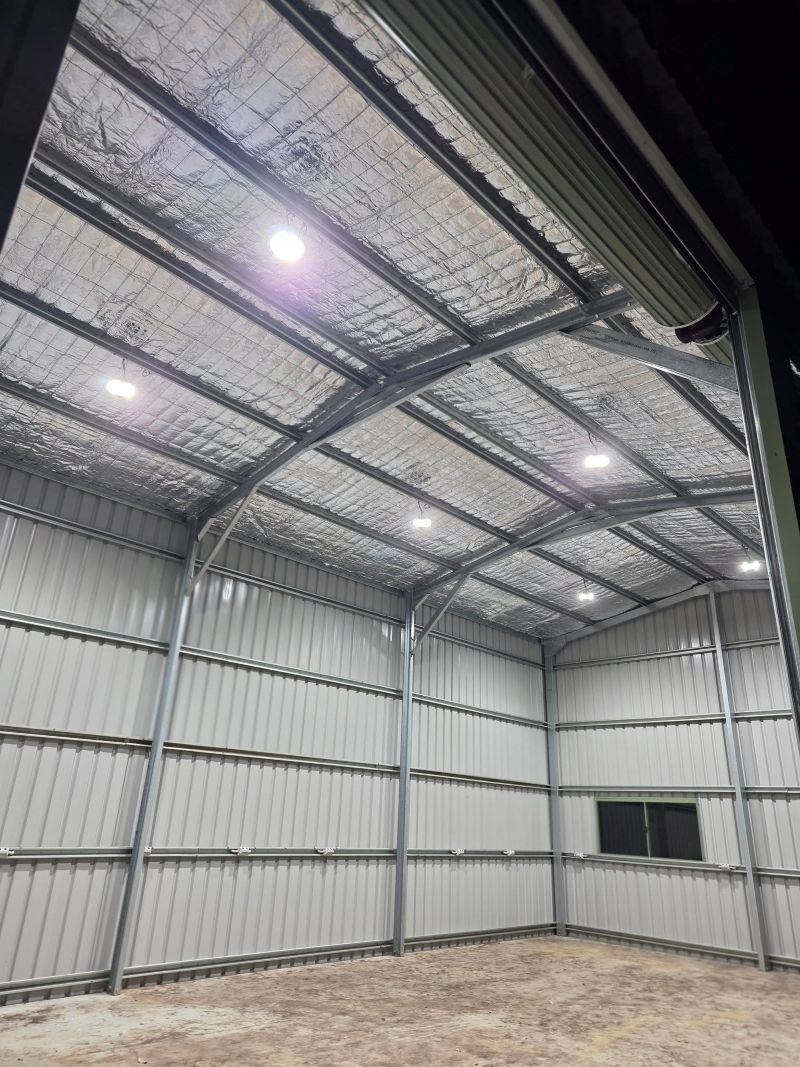

Create an Effective Lighting Strategy for Your Workshop

Proper lighting is vital for safety in your workshop. Adequate visibility is crucial, particularly when working with sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens offer bright, even lighting throughout the area. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become clogged with sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting provides general coverage, focused lighting at the workbench, lathe, and drill press is essential for precision tasks, enhancing both productivity and safety.
• Separate lighting circuit — Lighting should function on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in darkness next to a running table saw poses a substantial safety risk.

We possess extensive experience with lighting layouts in commercial environments. Our team can assist you in designing a workshop lighting plan that markedly improves your working conditions while adhering to safety standards.

Plan for Efficient Ventilation and Dust Extraction Circuits

When engaging in woodworking or welding, ensuring adequate ventilation is as vital as having sufficient electrical power. Dust extraction systems and exhaust fans necessitate their dedicated circuits due to several important factors:

• Continuous operation — Your dust extractor must operate whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise both safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when certain tools are turned on. This requires meticulous circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to maintain proper airflow. If using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Explore the Benefits of Three-Phase Power for Heavy Equipment

When undertaking intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power provides several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges typical of single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables generally operate on three-phase power, ensuring optimal functionality.
• Smoother operation — Three-phase motors function more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will necessitate the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment faces considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend incorporating surge protection at the main switchboard to protect against lightning-induced surges that could harm your equipment.

For properties dependent on a generator for backup power, including a generator changeover switch ensures smooth transitions between mains power and generator supply, eliminating the risk of back-feeding or damaging connected equipment.

Incorporate Additional Features into Your Workshop Wiring

Consider integrating several more features into your workshop wiring from the outset:

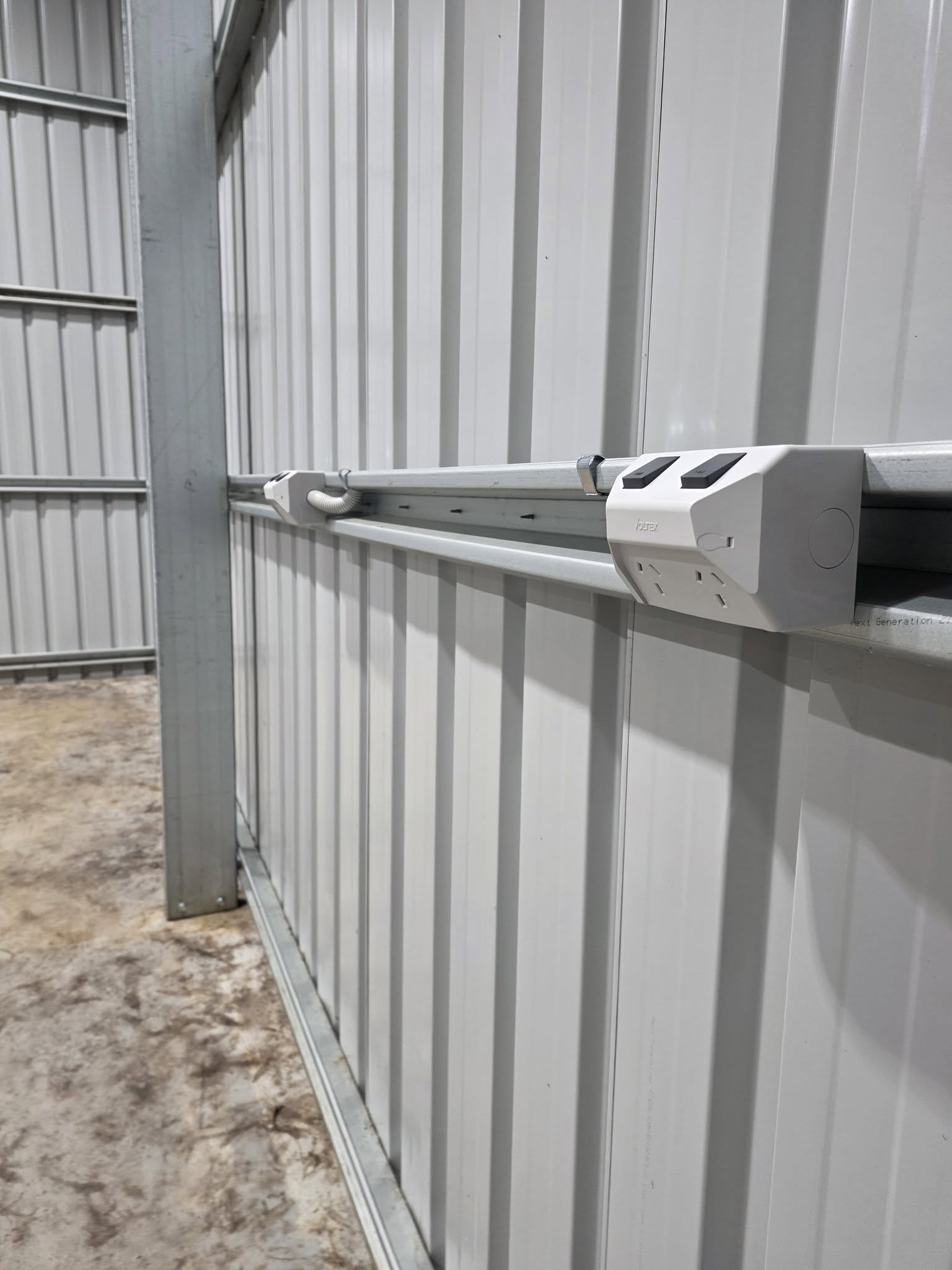

• Ample power points — Install more power points and switches than you believe necessary. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at each bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring simultaneously with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are finished.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas that lack adequate street lighting.
• EV or equipment charging — If you utilise electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to avoid overloading general outlets.

Estimate the Financial Investment for Your Workshop Electrical Setup

Cost estimates will fluctuate based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting at £5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting at £10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from £15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes based on your specific workshop and equipment requirements—there are no hidden fees involved.

Important Note: All Electrical Work Must Be Conducted by Licensed Professionals

This is a vital point to stress. In New South Wales, all electrical wiring work must be undertaken by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to guarantee safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety risks, and result in hefty fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious repercussions.

Your Frequently Asked Questions Addressed

Can I Use a Standard Power Point for My Welder?

Small stick welders (up to around 140A output) can indeed be operated with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or could cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally necessitates a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future expansions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops operate effectively on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Consult our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting generally takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.

Ensure Your Workshop Is Properly Wired for Optimal Efficiency

If you are establishing a workshop on your property and wish to ensure it is done correctly from the outset, reach out to us. We will visit your site, assess your space and equipment list, and develop a tailored plan that meets your power requirements without compromising safety or quality.
