Clay Soil’s Effect on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have observed wet patches, sinking areas, ongoing blockages, or cracks in your foundation, you may be concerned that reactive clay soil is compromising your underground pipes.

The soil in Caboolture consists of reactive clay, which expands when wet and contracts when dry, sometimes varying in volume by 20% or more. This continual fluctuation exerts significant pressure on underground pipes during wet periods, rendering them susceptible as the soil dries out. Older clay sewer pipes and galvanised water pipes are particularly at risk. A camera inspection can detect damage at an early stage, while pipe relining often serves as a practical solution that eliminates the need for garden excavation.

In Caboolture, your underground pipes are constantly contending with the surrounding soil.

This persistent struggle can result in serious damage to pipes over time. By the time visible symptoms become apparent, the underlying issues may have been developing for a considerable duration.

How Do Clay Soil Cycles Contribute to Pipe Damage?

Four key phases are involved: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of these cycles, and the prevalent drought-to-flood transitions in Southeast Queensland. Each cycle intensifies existing cracks and misaligns joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand. This expansion creates crushing pressure on pipes from all sides, potentially forcing joints together or separating them. Rigid pipe materials are particularly susceptible to cracking under such immense pressure.
• The dry phase: When the rain stops and the clay dries, it contracts and detaches from the pipes. This results in voids and gaps, causing sagging, joint bending, and the formation of bellies where water and sediment can collect.
• The repeat cycle: This process of expansion and contraction occurs repeatedly with changing weather—often dozens of times a year in Caboolture’s climate. Each cycle increases stress on the pipes and gradually enlarges existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and intense wet seasons. After a prolonged dry period, the clay shrinks significantly. When heavy rainfall finally occurs, the soil expands rapidly, placing pipes—which may be resting in loose, cracked ground—under sudden, extreme stress.

Which Pipes Are Most Susceptible to Damage?

Older clay sewer pipes (from properties built before the 1970s), galvanised steel water mains (from homes constructed prior to 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally perform better, but insufficient backfill can still lead to joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, particularly those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle composition and substantial construction, combined with mortar joints, make them prone to cracking.
• Galvanised steel pipes: Utilised for water supply in homes constructed prior to 1985, these pipes are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they often crack at joints during ground movement, permitting roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. Significant ground movement can still result in joint separation. Poor backfill during installation can heighten the vulnerability of PVC pipes.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Symptoms Suggest Damage to Underground Pipes?

Be alert for wet spots during dry periods, sinkholes or soft areas, slow drainage, unpleasant odours in your yard, unusually lush patches of grass, trees heavily rooting in one location, and cracks in your slab. If you notice two or more of these symptoms, arrange for a camera inspection without delay.

• Wet patches in the yard during dry weather—this may indicate water leaking from a damaged pipe and saturating the soil.
• Sinkholes or soft spots—these develop when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurrent blockages—a cracked, misaligned, or belly-shaped pipe can trap debris and roots at the damaged areas.
• Unpleasant smells in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

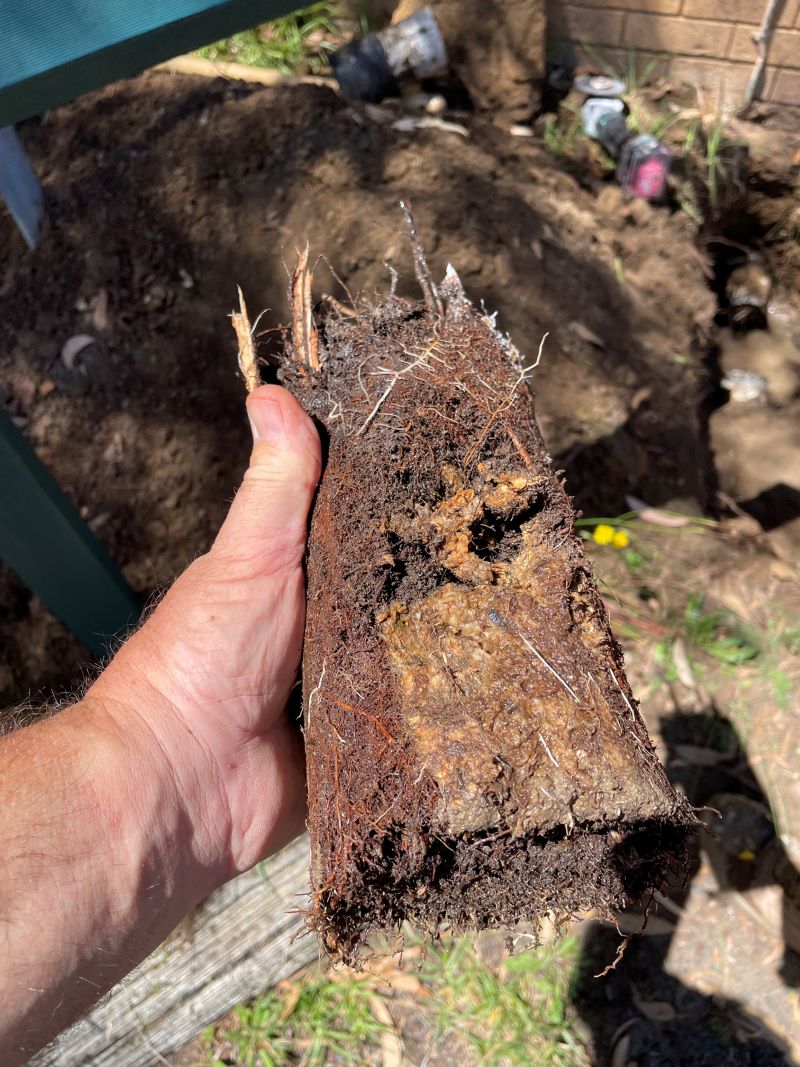

• Tree roots thriving in a specific area—trees often sense moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Do We Detect Pipe Damage?

We employ CCTV drain cameras to conduct real-time visual inspections of sewer and stormwater pipes, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we use acoustic and thermal leak detection methods, alongside a comprehensive property assessment to foresee potential future damage.

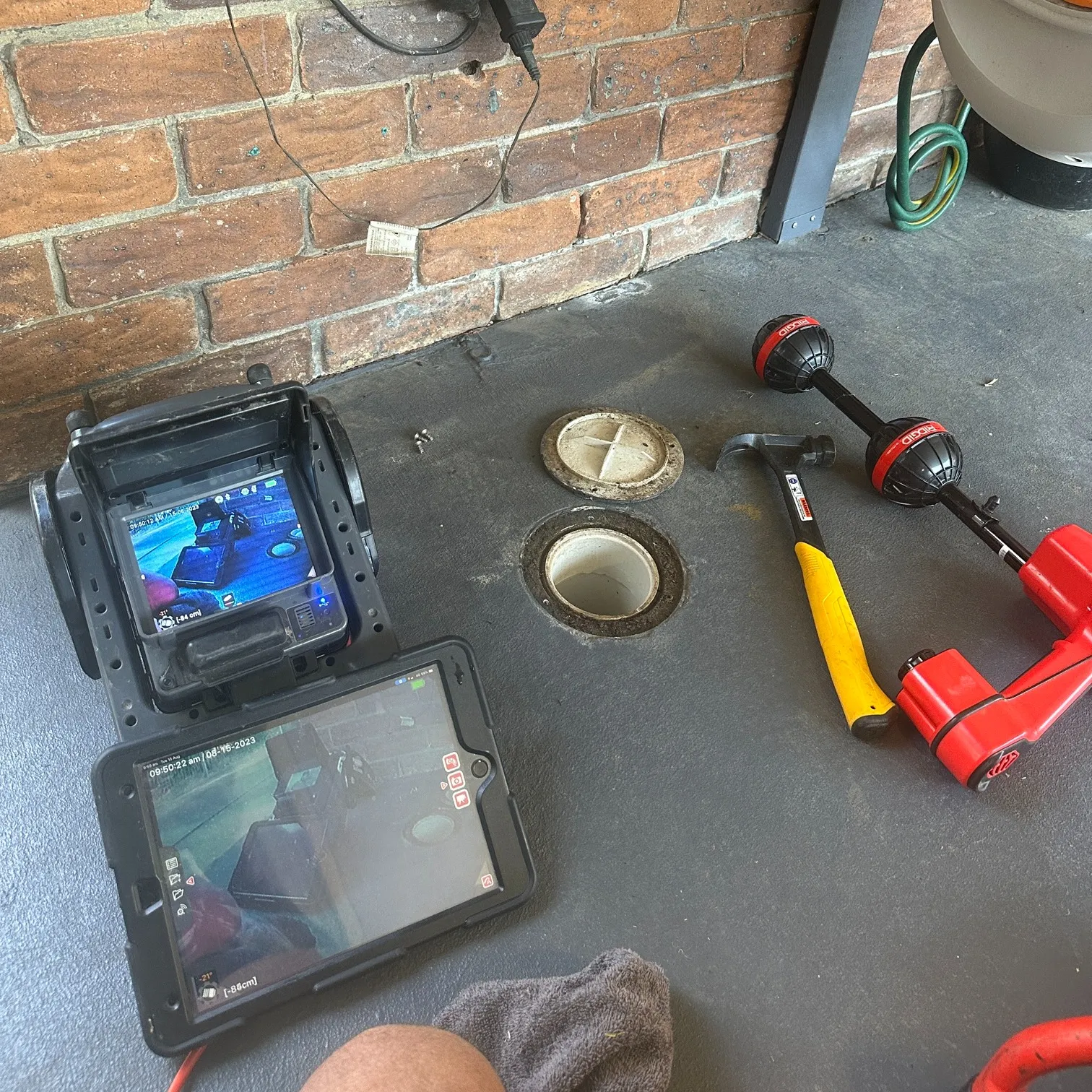

• CCTV drain camera inspection: A camera navigates through the pipe, offering a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment build-up, and collapsed areas.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, allowing us to identify problems without excavation.
• Ground assessment: We assess the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where issues may arise next.

What Are the Effective Solutions for Pipe Damage?

Hydro jetting is utilised to clear immediate blockages. For cracked or root-invaded pipes, pipe relining presents the most effective solution—this method does not require excavation. Installing French and spoon drains can help mitigate future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in position, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems divert groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to minimise future issues caused by ground movement.

Why Is It Essential to Act Quickly to Prevent Pipe Collapse?

Damage to underground pipes in clay soil worsens over time. The situation does not stabilise; it deteriorates. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately obstructing the pipe entirely.

The most economical repairs are those conducted early. A camera inspection reveals the precise conditions underground, permitting you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange for your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not possible. Regularly watering the area around your home during dry periods can help lessen the shrinkage cycle. Effective tree management can alleviate root pressure on pipes. Proper drainage systems also aid in decreasing soil saturation. Consistent monitoring of pipes in reactive clay soil is crucial—camera inspections can identify issues at an early stage.

What Are the Repair Costs for Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe features a smooth, jointless interior that often allows for better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine if My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was built with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Consider This Article Irrelevant?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to undertake DIY plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we will not commence excavation without first conducting a camera inspection.
